The Chemistry of Star Forming Regions

David A Williams (1) and Thomas W Hartquist (2)

(1) Department of Physics and Astronomy, University College London, UK
(2) Department of Physics, University of Leeds, UK Accounts of Chemical Research, Vol. 32, 1999, pp. 334-341.

Introduction

During the last quarter century, chemists have responded magnificently to the challenges raised by astronomers in their attempts to understand the variety of molecules detected in interstellar clouds. Observations have shown the chemistry of these regions to be surprisingly complex, and now more than one hundred molecular species have been identified in interstellar and circumstellar regions of the Galaxy. The chemistry of interstellar clouds that gives rise to these molecules is now believed to be reasonably well understood (see next section) in terms of a network of some thousands of binary reactions between several hundred species [1,2].

Astronomers are now applying the techniques of astrochemistry to interpret observations of star forming regions [3]. These regions are much more complex in physical terms than quiescent interstellar clouds. In star-forming regions, interstellar gas is being compressed, the force of gravity overcoming the resistance provided by gas pressure, magnetohydro-dynamic (MHD) turbulence, magnetic pressure, and rotation. The chemistry is not in steady state during this collapse, and can therefore be used as a tracer of the evolution of the collapse. In addition, the chemistry modifies and controls the collapse through the provision of molecular coolants of the gas, and by determining the fractional ionization in the gas. It is this ionization that affects the level of magnetic and turbulent support available to the cloud. Molecular rotational emissions at millimetre and submillimetre wavelengths are both the main cooling processes and the most effective probes of these regions.

Interstellar gas in the Galaxy is observed to be distributed in an irregular fashion, in clouds of a range of sizes. Much of the mass is encompassed in so-called giant molecular clouds (GMCs) which range in mass from about 104 to about 106 solar masses (the mass is 2*1030 kg) and have linear extents of several hundred light years (a year ly 1*1016 m). The gas in GMCs largely H2 but because that molecule has no dipole moment material most effectively traced 1-0 rotational emission CO next abundant (CO/H210-4 by number). Isotopomers are also used. identifies cold number density molecules cm-3. >

A detailed study [4] of one particular GMC, the Rosette molecular cloud (RMC), shows that it contains almost 2*105 solar masses of gas, extending over 100 ly. The gas in the RMC is fragmented into about 70 clumps with masses ranging from a few tens to a few thousands of solar masses. The clumps are embedded in a more tenuous medium, typically contain 102-103 H2 molecule cm-3, and are cool (<30K). Observations show that clumps with larger column densities of CO (>1016 CO molecules cm-2) are more likely to contain embedded stars. Therefore, clumps satisfying this criterion are likely to be the sites of star formation in the RMC.

Collapse of a clump leads to fragmentation and the formation of a cluster of dense cores. Carbon monoxide (12C16O) is not an effective tracer of gas in dense cores because the CO lines are optically thick and CO level populations are thermalised at lower densities. However, species of lower abundance than 12C16O can trace the dense gas in cores (>104 H2 molecules cm-3), and they include NH3, CN, H2, CO, and CS. A typical core cluster [5] is illustrated in Figure 1. It is a contour map in intensity of 1-0 rotational emission from the minor isotopic species 12C18O. This core cluster contains cores which may evolve to form new stars. Several stars have already formed and are detected as infrared sources (IRS 1-4).

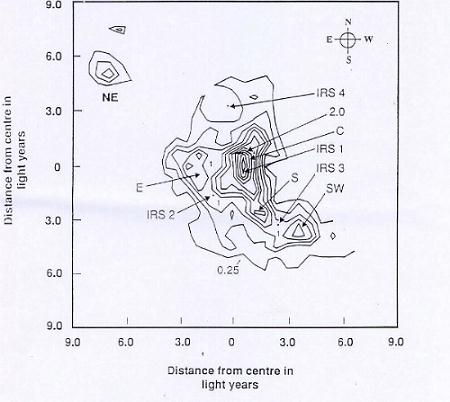

Figure 1. A contour map in the intensity of emission in the 12C18O line from the molecular cloud Barnard 5. This cloud is a core-cluster, and five cores (NE, E, C, S and SW) are evident. The cloud also contains several infrared sources (IRS 1-4); these are young stars still embedded in the dense cloud from which they were formed.

A primary goal of astrophysics is the detailed study of the collapse of a dense core to form a star. It is also important to gain an understanding of how gravity overcomes the various resistances to collapse, and how a young star interacts with its environment through the stellar winds and jets that develop at the earliest stages of a star's existence. The answers to these questions are certainly contained in the emissions from the molecules and dust present in the collapsing core. Identifying a collapsing core is observationally difficult. The indicators should be molecular lines that are broadened by the infalling velocities. In this Account, we describe how the search for the infall signature has led to a recognition that the interaction of gas and dust in the infalling gas produces profound changes to the chemistry and physics of star-forming regions. This interaction is poorly understood, and the nature of the star-forming process will remain obscure until these microscopic interactions can be accurately described.

There was in the 1970s and 1980s a concerted effort by experimental and theoretical chemists to solve problems identified by astronomers of gas phase chemistry in interstellar clouds. A similar program for gas/surface interactions is now required for the resolution of the larger and more significant problem of star formation.

Back to Contents...

The Chemistry of Star Formation

Basic Chemical Schemes

The parent of the star was the core; its grandfather was the clump. The onset of the chemistry at the start of this process is due to the formation of H2, believed to result from the interaction of atomic hydrogen gas with dust grains in heterogeneous catalysis. The process is not well understood, partly because of the uncertainty associated with the nature of the dust surfaces. We return to the discussion of H2 formation in a later section. The nature and properties of cosmic dust were discussed by Whittet [6], and by Mathis [7]. The main effects of dust that need concern us here are these: dust extinguishes starlight and provides a surface on which molecules may freeze out, and on which chemistry may occur.

We first consider the chemistry of regions sufficiently darkened by the dust in them that photons of external origin have a negligible effect on the chemistry. The interstellar medium is swept by cosmic rays, which are mainly fast protons and electrons with energies of several hundred MeV.

Cosmic rays (cr) cause ionization of H2 and He:

(1)



(2)

H2+ is quickly converted to H3+. This ion and He+ are largely responsible for driving an efficient ion-molecule chemistry. Because H2 is by far the most abundant species, if another species can react with it, that species will be removed primarily by H2. Thus, proton transfer followed by a sequence of hydrogen abstraction reactions is important for the chemistry of several abundant elements.

For instance,

(3)

As illustrated above, a molecular ion that does not react nonradiatively with H2 is removed primarily by dissociative recombination (or by reactions with trace neutral species). OH and H2O as well as NH, NH2, and NH3 are formed in a manner similar to CH and CH2. He+ is particularly important for preventing all material from being contained in very stable species, like CO or N2 and O2, which are formed by the neutral-neutral reactions N + NH -> N2 + H and O + OH -> O2 + H. While N+ and O+, formed by the removal of N2 and O2 in reacting with He+, react with H2, the fate of C+ is more interesting and will be discussed in a later section.

Straightforward gas phase routes produce many of the smaller detected interstellar species. However, it appears that some contribution from surface reactions is also required. For example, the detection of interstellar NH in diffuse clouds [8,9] appears to need a contribution from an efficient hydrogenation of N-atoms in surface reactions [10]. Other evidence of surface chemistry arises from the study of hot cores. These are small (~0.1 ly), dense (~107 H2 cm-3) cores found within ~1 ly of hot stars. The intense stellar radiation heats the cores to about 100K, much hotter than the typical 10K for interstellar matter. It is found that hot cores contain anomalously high abundances of various species (compared to quiescent molecular clouds), including some organic molecules such as ethanol, methyl formate, and dimethyl ether. Their abundances cannot be accounted for by a gas phase chemistry of the type described above. It is believed that they are formed by chemical processing of molecular ices (mostly H2O, CO, CO2, H2CO, and CH3OH) deposited on dust grains in the earlier, colder, prestellar phase of evolution of the material [11].

Back to Contents...

Chemical Control in Star Formation [12]

The collapse of a cloud converts gravitational potential energy to kinetic, much of which would appear as heat unless it was radiated away. At temperatures less than about 300K, the main coolant is CO which contains most of the carbon. The CO molecules radiate readily in the millimetre and submillimetre wavelength ranges. Relevant time scales, including that for cooling, are given in Table 1.

Processes

Mechanism

Approximate time scale (years)

collapse

gravity

108 / nH1/2

cooling

radiation

3*105 (104 / nH) (at T10K)

freeze-out

gas/grain collisions, sticking probability S

3*109 / (nHS)

ion-molecule chemistry

cosmic ray ionization

3*105

ambipolar diffusion

ion-neutral drift

4*10,5 X(i) / 10-8

desorption

chemically driven by H2 formation

3*105 [X(CO)/10-4][1cm-3/n(H)]

Table 1.  Approximate time scales in star-forming regions.
nH = n(H) + 2n(H2);   X(i) = n(ions)/nH;   X(CO) = n(CO)/nH.

    In addition to determining the cooling, the chemistry also determines the fractional ionization in the cloud.  At cloud edges, the carbon is almost fully photoionised and provides most of the cloud's ionization, but in clumps and cores much of the carbon is converted to CO, which unlike most species, is screened by itself and by H2 from radiation of external origin that would otherwise dissociate it.  In these conditions, the fractional ionization is a function of the number density of hydrogen nuclei (nH), elemental fractional abundances, and the optical depth to the cloud edge.  The optical depth at visible wavelengths is caused by dust grains. Typically, one optical depth of extinction at 555 nm arises in a column of 2*1021 hydrogen nuclei cm-2, although the grains are several times more obscuring in the far ultraviolet.  For nH103 cm-3 and a centre-to-edge column density of 2.5*1021 H2 cm-2 (just less than is typical of the Rosette clumps in which stars exist) C+ is the dominant ion.  It arises by the ionisation of C by photons of external origin, the C is released in the photodissociation of CO by photons radiated by the interaction of H2 with fast electrons produced when cosmic rays induce ionisation.  At such column densities, the fractional ionisation is a rapidly decreasing function of column density.  Therefore, thicker clumps have much higher damping rates of waves [13] which support clumps against collapse along the large-scale magnetic field.  Therefore, thicker clumps collapse sooner, giving rise to the formation of cores and ultimately stars.

    At typical core densities C+ is the dominant ion only in a negligibly thin outer sheath.  For column densities of less than about 5*1021 H2 cm-2 to the edge, the dominant ions are S+, Si+, Na+, Mg+, Ca+, and other elements with low ionisation potentials.  For higher column densities ionisation is induced primarily by cosmic rays.  This leads to the formation of HCO+ and other less abundant molecular ions.  Charge transfer from these ions to metals such as Na  and Mg produces the most abundant ions, Na+ and Mg+.  These atomic ions are ultimately removed in collision with dust grains carrying negative charges.  In dark regions of cores, the fractional ionisation is typically about 10-8.  Throughout most of a core the fractional ionisation depends on the fractional elemental abundances of sulphur and metals such as Na and Mg.  Therefore, the degree to which friction between neutrals and ions prevents neutrals from drifting during the collapse relative to magnetic lines depends on those fractional elemental abundances.  The abundances in turn are affected by freeze-out onto grains.  The measurements of the abundances of gas tracers such as carbon monosulphide, CS, various molecular ions, and other gas phase species indicate that the gas phase fractional abundances of elemental sulphur and metals may be reduced by a couple of orders of magnitude, even where carbon and oxygen appear to be rather undepleted.  Theoretical models of core collapse to form stars must eventually include accurate descriptions of how elemental sulphur and metals freeze onto grains.

Back to Contents...

The Detection of Core Collapse

When observational studies of dense cores began, it was expected that the signatures of collapse would be readily detected in the line profiles of molecular emissions.  In the simplest picture of a collapsing core, the densest and most rapidly infalling gas would contribute broad wings to the emission profile of the radiating molecules.  However, observations of many cores did not reveal that broad profile.  A detailed study in NH3 emission of one particular core that was expected to show infall gave a molecular line profile [14] that deviated little from a thermal profile at 10K (see Figure 2).

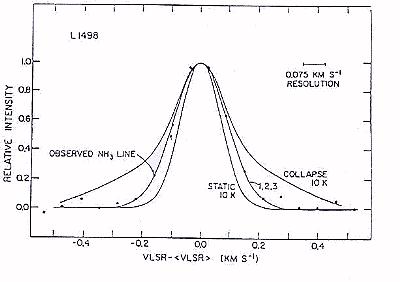

Figure 2. The NH3 line profile of L1498.  The curve associated with the dots is the observed profile.  The curve marked "static" is the one expected from 10K gas that is not turbulent and experiences no systematic motion.  The curve marked "collapse" is the profile expected if the fractional abundance of NH3 is constant and the core is undergoing collapse governed by a particular solution of the class that Shu (1977) investigated (see [14]).

It was suggested that perhaps the ammonia molecules expected to trace the collapse had been removed from the gas phase by freezing onto dust grains present in the gas.  The existence of spectral features of dirty ices toward sufficiently opaque cores proves that such freeze-out occurs.  The freeze-out rate increases with density, so the molecules in the densest parts of the core would be expected to freeze-out first.  A detailed study showed not only that this was a plausible explanation of the narrow NH3 line profile, but also that some other molecules behaved in a different and nonintuitive manner.  While freeze-out was depleting the gas phase abundances of some molecules such as H2O and NH3, other species were actually rising in abundance.  The reason for this unexpected behaviour lies in the strongly coupled nature of the dense core chemistry.  The C+ ions created by reaction of CO with He+ (see reaction (3)) can react in two main ways:

(4)

The reaction of C+ with H2 is a slow radiative association, whereas that with H2O is a fast ion-molecule reaction.  When H2O is abundant in the gas phase, the second branch dominates and, in effect, any CO removed is quickly replaced.  However, when H2O is depleted from the gas phase by freeze-out onto dust, carbon is effectively taken out of CO and put into hydrocarbons.  Also, a decrease of the O fractional abundance reduces the CH3+ removal rate, increasing the fraction of CH3+ that may react with more complicated species.  As seen in Figure 3, the abundance of HC3N responds markedly as freeze-out occurs [15].  The first peak in the curve is simply a reflection of the initial condition that much of the carbon was atomic, whereas the second peak is a consequence of freeze-out.

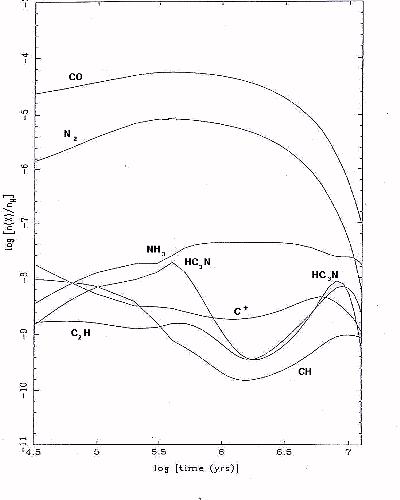

Figure 3.  The computed time-evolution of functional abundances of various species in static dense core.  Initially, all elements other than hydrogen are atomic.  Molecules formed in the chemistry are lost by freeze-out onto dust on a time scale assumed here to be about 3 million years; CO and N2 illustrate this behaviour.  Other species show a late-time peak in abundance (e.g. cyanopolyyne, HC3N).  The early-time peak in HC3N reflects the assumed initial atomic condition of the gas (see [15]).

H2CO is a hydrocarbon predicted to have a fairly constant fractional abundance as elemental oxygen and carbon freeze-out occurs.  Observational studies of this molecule toward the star-containing dense core B335 have revealed a H2CO line profile that is consistent with collapse [16].

Collapse signatures have also been detected toward B335 in CS line profiles [13].  As mentioned above, sulphur and metals seem to freeze-out in ways that differ markedly from those associated with carbon, nitrogen and oxygen.  To interpret the CS profiles, we need to know whether further elemental sulphur freeze-out occurs as the depletion of less massive elements becomes substantial.

The line profiles of many species important for the diagnosis of collapse depend on the ratio of the dynamic time scale to the time scales for the freeze-out of various species.  All of the freeze-out time scales remain to be inferred from experimental and theoretical studies.

Back to Contents...

Cosmic Dust and the Gas/Surface Interaction

The Nature of the Dust Surfaces

The evidence [17] for the widespread existence of interstellar dust leads to the conclusion that about 1% of the mass of the interstellar medium of the Galaxy is in dust, that dust grains range in size from a few nanometres to at least a few tenths of a micrometre, and that their size distribution decreases steeply with size a, perhaps as a-3.5.  The dust composition in diffuse clouds certainly includes silicates, hydrogenated amorphous carbon, and possibly graphite.  In sufficiently opaque regions, through which the optical depth to visual radiation is more than about 2, H2O ice mantles are deposited on the refractory dust.  The ice is detected by absorption in the ice band near 3 micrometres and elsewhere [6].  More heavily extinguished regions exhibit absorption by solid CO, near 4.7 micrometres.  Other species are also present in the ice (e.g. CH3OH) [18].

The dust grains are almost certainly porous, open structures.  Such a morphology is found for some interplanetary dust particles.  The void component may be significant and the surface area larger than the equivalent for a sphere of the same mass.  Variations in the optical properties of dust from one line of sight to another can be accounted for - but only in part - by changes in the size distribution of the grains.  It appears that changes in the optical properties of the dust grains are also required [19].  These changes may be achieved by photoprocessing of carbonaceous materials [20].

Back to Contents...

Sticking at Dust Surfaces

The fundamental process in the gas/surface interaction is sticking.  What is the probability that a gas atom or molecule becomes bound on the surface?  The assumption generally made by astrophysicists is that the probability is of order unity.  Theoretical studies show that it is sensitive to the interaction potential, to the energy exchange mechanisms available, and to the temperatures of the gas and surface.  Early work discussed adsorption on crystalline materials [21].  Theoretical studies on amorphous materials have concentrated on the interaction of H and H2 on amorphous ice.  Initial studies involving amorphous carbon surfaces have been completed [22].


Several studies were made through classical molecular dynamics (MD) simulations of the interaction of H-atoms with amorphous ice [23,24].  These studies generally imply that the sticking probability is of order unity under conditions relevant to the cool interstellar medium.  In the most detailed study [24] the MD-stimulated amorphous ice matches well the experimental data on low-temperature ice, and the sticking probability on ice at 10K is 1.0, 0.98, and 0.53 at temperatures of 10, 100 and 350K respectively.  The adsorbed H-atom diffuses over the surface by thermal hopping until it is trapped at a site of strong binding.  No H-atom ejection was observed in these simulations.  An experiment [25] to determine the sticking of warm H-atoms on cold, dirty ice gave a result one order of magnitude smaller.

There is little work reported in the literature on the sticking of heavier species on relevant amorphous surfaces, although the astrophysical consequences of sticking may be profound.  It is generally assumed in astrochemical models that saturated neutral molecules, such as H2O, NH3, CH4, H2CO, CH3OH, HCN, etc., stick with probability equal to unity.  The interaction of neutral atoms is often assumed to lead to hydrides, but it is unclear whether the products are released to the gas phase or retained on the dust grain (d):

(5)

The detection of interstellar ice for clouds of sufficient optical opacity suggests that much of the H2O must be retained in those circumstances [26], although this does not happen in diffuse clouds.  However, it is unclear at present whether release occurs as the saturated hydride (e.g. H2O, NH3) or as an unsaturated radical (OH, NH, NH2).  The case of sulphur atoms is particularly interesting, and as described in an earlier section, may have significant consequences in star-forming regions.

Beyond the assumptions described above for atoms and molecules, there is no consensus among astrophysicists on how to treat the interaction of low-temperature atomic and molecular ions with dust grains.  Here we list the various channels that may be open.  For atomic ions, there are circumstances when they may interact with grains of positive, neutral, or negative charge:

(6)

(7)

(8)

If, in equation 6, the ion recombination occurs at long range, the the atom-surface interaction is essentially as discussed above and the sticking probability could be assessed on that basis.  On the other hand, if the recombination occurs at short range, the energy release may inhibit sticking.  In equation 7, the ion charge may promote the atom-surface interaction and enhance sticking.  Interaction equation 8 is certainly less favourable, but there may be possible attractive avenues of approach [27].

The interaction of molecular ions with dust grains may be important in dark clouds where dust grains are mostly negative and where the fractional ionisation is very low (~10-8).  Various channels are indicated for HCO+, as an example:

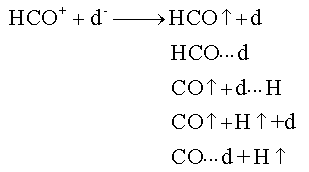

(9)

However, nothing is known (by astrophysicists) about the probabilities of such interactions.

Back to Contents...

Formation of H2 on Dust Grains

An estimate of the rate of formation of H2 in the interstellar medium can be made by assuming steady state and calculating the rate of destruction.  Molecular hydrogen is destroyed in the diffuse interstellar medium through line absorption at wavelengths near 100 nm from the ground state X to various rovibrational states of the excited electronic levels B and C [28].  The excited molecule relaxes into a distribution of rovibrational levels of state X, including the vibrational continuum.  These continuum states are dissociative.  Because the destruction process is initiated by a line excitation, H2 may self-shield.  in the optically thin case, however, the photodissociation rate is well determined, and together with the observed abundances of H and H2, the formation rate [29] in these regions may be written as about 3*10-17 nH n(H) cm-3s-1, where nH and n(H) are the number densities of all hydrogen nuclei and of free H-atoms, respectively.

This observational requirement for the general interstellar medium cannot be met by any known gas phase reactions [32].  Surface processes, however, can do so if they are of high efficiency, i.e. if nearly all H-atoms arriving at grain surfaces are incorporated into H2 molecules and ejected from the surface.

Energy deposition during H2 formation in postshock regions and in gas exposed to X-rays is of great importance for the thermal structures and emissivities of a variety of astrophysical sources.  For instance, the release of energy in the production of H2 in H2O masers in shocked gas near recently born high-mass stars has been proposed as the mechanism that establishes thermal conditions required for collisional pumping of the masers [30].  Also, excited rovibrational levels of H2 in gas in molecular tori irradiated by nearby active galactic nuclei, probably powered by accretion onto supermassive black holes, may be populated primarily as a consequence of H2 formation on grains [31]; the infrared radiation emitted in the decays of such levels is important in the diagnosis of these exotic regions.

There are two generic mechanisms [32]:  in the first, "standard" model, an H-atom arrives at a surface, is adsorbed but mobile, locates another H-atom bound at a special site, the reaction to form H2 occurs, and the energy released ejects an excited H2 molecule from the surface.  This process is called the Langmuir-Hinshelwood (L-H) mechanism.  In a second, or "prompt" reaction model [33], the incident H-atom is not accommodated on the surface but interacts directly (promptly) with a physisorbed or chemisorbed H-atom; it does not move over the surface.  This process is called the Eley-Rideal (E-R) mechanism.  There are differences in the two types of process that would have astrophysical consequences.  The L-H process is sensitive to the nature of the surface, whereas the E-R process is not.  The near uniformity on many lines of sight of the H2 formation rate implied by observational studies may therefore favour the E-R mechanism.  There are also different temperature dependencies for each process which may be important when H2 formation is considered in a range of astrophysical circumstances.

Recent advances in both experimental and computational techniques have made it possible to investigate for the first time the H2 formation process under circumstances that are reasonable approximations to interstellar conditions.  Studies of reactions on silicates suggest that the H2 formation rate is significantly smaller than that required by observations [34,35].  The discrepancy may possibly be removed if the grains have a larger surface area than assumed, i.e. are porous.  A theoretical study of H2 formation on carbon grains shows that a variety of pathways operate under a broad range of conditions [36].  A theoretical study of H2 formation on amorphous ice [37], incorporating the results of the MD description of the ice and of H-atom interactions with it, leads to the following conclusions.  The H-atoms sticking probability is generally high.  Several reaction types were observed to occur, including the L-H and E-R mechanisms.  In some cases, the molecule is not formed; however, when part of the excess energy released by formation can be absorbed by the ice, then the  occurred and the H2 molecule was formed.  The reaction probabilities found in these simulations were very close to unity at 10 and 70K.  Most of the ejected H2 molecules were found to be in states of high rovibrational excitation, in this simulation [38].  Significant vibrational excitation of H2  is also predicted by theoretical studies of H2 formation on graphite [22].

Back to Contents...

Desorption Processes

Thermal desorption of ice mantles on dust evidently occurs in so-called hot cores (as distinct from cold dense cores which may evolve to form stars).  Their chemistry is consistent with the evaporation and processing of ices that have been deposited in an early phase.  The evaporation is, presumably, thermal and is caused by the presence of a nearby newly formed massive star (c.f. an earlier section).

Nonthermal desorption may also occur, and could be significant in offsetting the effects of freeze-out.  As Table 1 indicates, the freeze-out time scale may be very short, so short that the chemical development of the clump may be inhibited.  There is some evidence from chemical modelling that an "effective" freeze-out time longer than implied by Table 1 is required [39,40].

Possible energy sources for desorption from ices deep in molecular clouds include the following [42]: ionisation by cosmic rays, photoabsorption of radiation generated by cosmic rays, and chemical energy.  All of these sources may play a role.

In principle, any exothermic reaction occurring at the surface of a dust grain must cause local heating around the site of the reaction.  Molecules adsorbed in the vicinity may be evaporated as a result of this energy increment [41].  It appears that the formation of H2 is in many circumstances the most frequently occurring reaction; energy of about 4.5 eV must be distributed between the reaction site, and translational and internal energy in the molecule.  If only three additional molecules per 100 H2 forming events are desorbed, then this process is faster than either of the competing mechanisms [42].  There is some suggestion from modelling studies that the process may be even more efficient, and that these would be important consequences for both solid and gas phase chemistry [43].  In an MD simulation of H2 formation [38], about 5% of the bond energy is found to be absorbed locally in the surface.  This would be enough to drive the nonthermal mechanism of desorption described here.

However, no direct test of these ideas for material of astrophysical interest has yet been made in the laboratory, although the energy deposition into an amorphous ice mantle has been computed in the studies of H2 formation.  The almost complete lack of knowledge about the effectiveness of chemical desorption is probably the single most important barrier to our understanding of the physics and chemistry of star formation.

Back to Contents...

Conclusions

We have described the main physical processes in the evolution of interstellar gas from a more diffuse clump state to a dense star-forming core.  The chemistry plays a crucial controlling role in this evolution by providing cooling molecules (which limit the thermal support) and by determining the level of ionisation (and therefore the extent of magnetic and turbulent support).  Although our knowledge of the gas phase process during this evolution is not complete, nevertheless, the processes are in general reasonably well understood.  By contrast, the gas/dust interaction is poorly understood, yet - as argued here - this interaction is important for heterogeneous catalysis, and for formation of ices and loss of molecules to the gas phase with consequent effects on cooling and fractional ionisation.  The role of chemical energy in driving a continuous desorption of molecules from ices may be exceptionally important to these processes, but our ignorance of the gas/dust interactions, in terms of sticking probability, mobility of adsorbed species, and the surface reaction process, is almost total.  However, recent advances in both experimental and computational techniques have now made these processes accessible to detailed study.  We may, therefore, expect rapid developments in the study of gas/surface interactions of relevance to astronomy, as was stimulated for gas phase chemistry by the demands of astrochemistry.

Back to Contents...

References

  1. E.F. van Dishoeck, in The Molecular Astrophysics of Stars and Galaxies, eds. T.W. Hartquist & D.A. Williams (Oxford University Press, Oxford, 1998).
  2. E. Herbst, Ann. Rev. Phys. Chem. 46 (1995) 27-53.
  3. T.W. Hartquist, P. Caselli, J.M.C. Rawlings, D.P. Ruffle & D.A. Williams, in The Molecular Astrophysics of Stars and Galaxies, eds. T.W. Hartquist & D.A. Williams (Oxford University Press, Oxford, 1998).
  4. J.P. Williams, L. Blitz & A.A. Stark, Astrophys. J. 451 (1995) 252-274.
  5. P.F. Goldsmith, W.D. Langer & R. Wilson, Astrophys J. 303 (1986) L11-L15.
  6. D.C.B. Whittet, Dust in the Galactic Environment (IOP Publishing, Bristol, 1992).
  7. J.S. Mathis, Ann. Rev. Astron. Astrophys. 28 (1990) 37-70.
  8. D.M. Meyer & K.C. Roth, Astrophys. J. Letts. 376 (1991) L49-L52.
  9. I.A. Crawford & D.A. Williams, Mon. Not. R. Astron. Soc. 291 (1997) L53-L56.
  10. R. Wagenblast, D.A. Williams & T.J. Millar, Mon. Not. R. Astron. Soc. 260 (1993) 420-424.
  11. T.J. Millar, in Dust and Chemistry in Astronomy, eds. T.J. Millar & D.A. Williams (IOP Publishing, Bristol, 1993) pp. 249-269.
  12. T.W. Hartquist & D.A. Williams, in The Chemically Controlled Cosmos, eds. T.W. Hartquist & D.A. Williams (Cambridge University Press, Cambridge, 1995).
  13. D.P. Ruffle, T.W. Hartquist, J.M.C. Rawlings & D.A. Williams, Astron. Astrophys. 334 (1998) 678-684.
  14. P. Myers & P.J. Benson, Astrophys. J. 266 (1983) 309-320.
  15. D.P. Ruffle, T.W. Hartquist, S.D. Taylor & D.A. Williams, Mon. Not. R. Astron. Soc. 291 (1997) 235-240.
  16. S. Zhou, Astrophys. J. 394 (1992) 204-216.
  17. D.A. Williams & S.D. Taylor, Q. J. R. Astron. Soc. 37 (1996) 565-592.
  18. D.C.B. Whittet et al., Astron. Astrophys. 315 (1996) L357-L360.
  19. C. Cecchi-Pestellini & D.A. Williams, Mon. Not. R. Astron. Soc. 296 (1998) 414-418.
  20. W.W. Duley, in Dust and Chemistry in Astronomy, eds. T.J. Millar & D.A. Williams (IOP Publishing, Bristol, 1993) pp. 71-101.
  21. M.A. Leitch-Devlin & D.A. Williams, Mon. Not. R. Astron. Soc. 213 (1985) 295-306.
  22. A. Farebrother, D.C. Clary & A. Fisher, in preparation.
  23. V. Buch & Q. Zhang, Astrophys. J. 379 (1991) 647-652.
  24. K. Masuda, J. Takahashi & T. Mukai, Astron. Astrophys. 330 (1998) 773-781.
  25. L. Mattera, Ph.D. Thesis (University of Waterloo, Canada, 1978).
  26. A.P. Jones & D.A. Williams, Mon. Not. R. Astron. Soc. 209 (1984) 955-960.
  27. A.P. Jones & D.A. Williams, Mon. Not. R. Astron. Soc. 219 (1986) 441-447.
  28. T.P. Stecher & D.A. Williams, Astrophys. J. Letts. 149 (1967) L29-L30.
  29. M. Jura, Astrophys. J. 197 (1975) 575-580.
  30. M. Elitzur, D.J. Hollenbach & C.F. McKee, Astrophys. J. 346 (1989) 983-990.
  31. S. Lepp & S. Tine, in The Molecular Astrophysics of Stars and Galaxies, eds. T.W. Hartquist & D.A. Williams (Oxford University Press, Oxford, 1998).
  32. W.W. Duley & D.A. Williams, Interstellar Chemistry (Academic Press, London, 1984).
  33. W.W. Duley, Mon. Not. R. Astron. Soc. 279 (1996) 591-594.
  34. V. Pironello, C. Liu, L. Shen & G. Vidali, Astrophys. J. Letts. 475 (1997) L69-L72.
  35. V. Pironello, O. Biham, C. Liu, L. Shen & G. Vidali, Astrophys. J. Letts. 483 (1997) L131.
  36. A. Levinson, D.F. Chernoff & E.E. Salpeter, Astrophys. J. (1998).
  37. J. Takahashi, K. Masuda & M. Nagoaka, Mon. Not. R. Astron. Soc., in press.
  38. J. Takahashi, K. Masuda & M. Nagoaka, Mon. Not. R. Astron. Soc., in press.
  39. S.D. Taylor, O. Morata & D.A. Williams, Astron. Astrophys. 313 (1996) 269-276.
  40. D. Howe, S.D. Taylor & D.A. Williams, Mon. Not. R. Astron. Soc. 279 (1996) 143-151.
  41. M. Allen & G.W. Robinson, Astrophys J. 195 (1975) 81-90.
  42. K. Willacy & D.A. Williams, Mon. Not. R. Astron. Soc. 260 (1993) 635-642.
  43. K. Willacy, D.A. Williams & W.W. Duley, Mon. Not. R. Astron. Soc. 267 (1994) 949-956.
